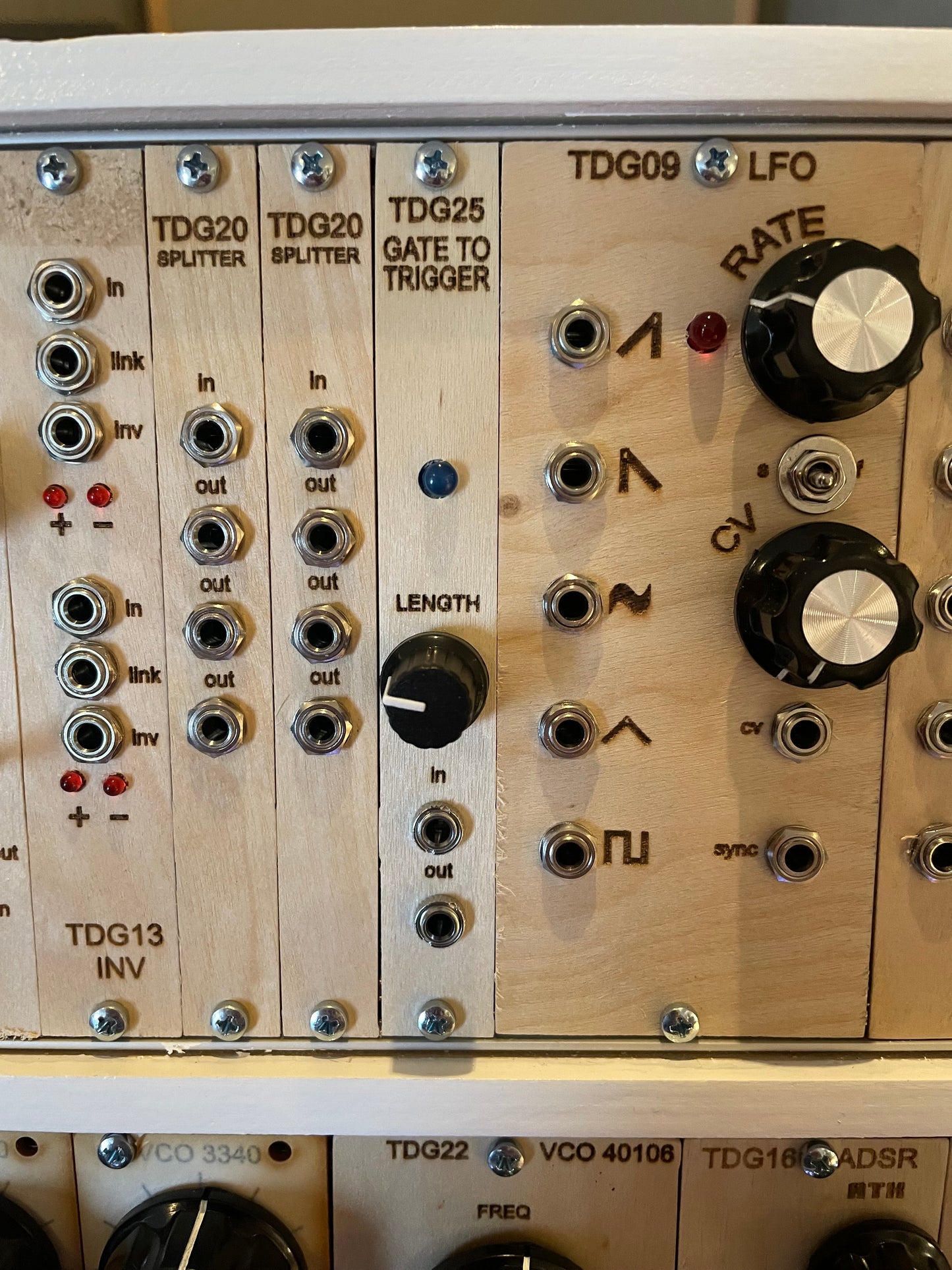

TDG25 GATE TO TRIGGER
TDG25 GATE TO TRIGGER
Regular price
€20,00 EUR
Regular price
Sale price
€20,00 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
This product effectively transforms a gate signal into a trigger, allowing for inputs that require triggers, such as drum modules. The trigger length can be easily adjusted between 5ms and 400ms, and a LED light indicates the length of the created trigger signal.

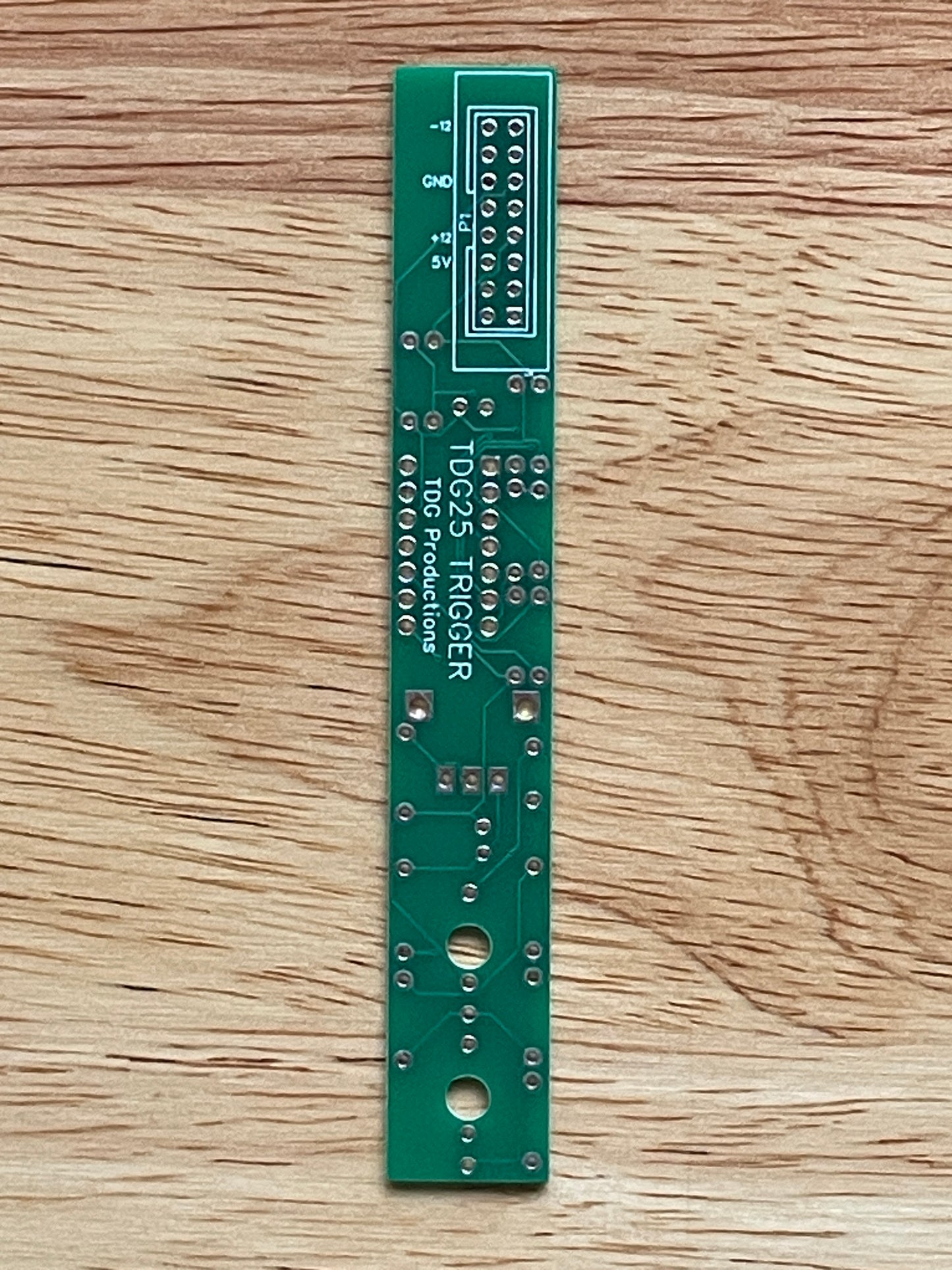

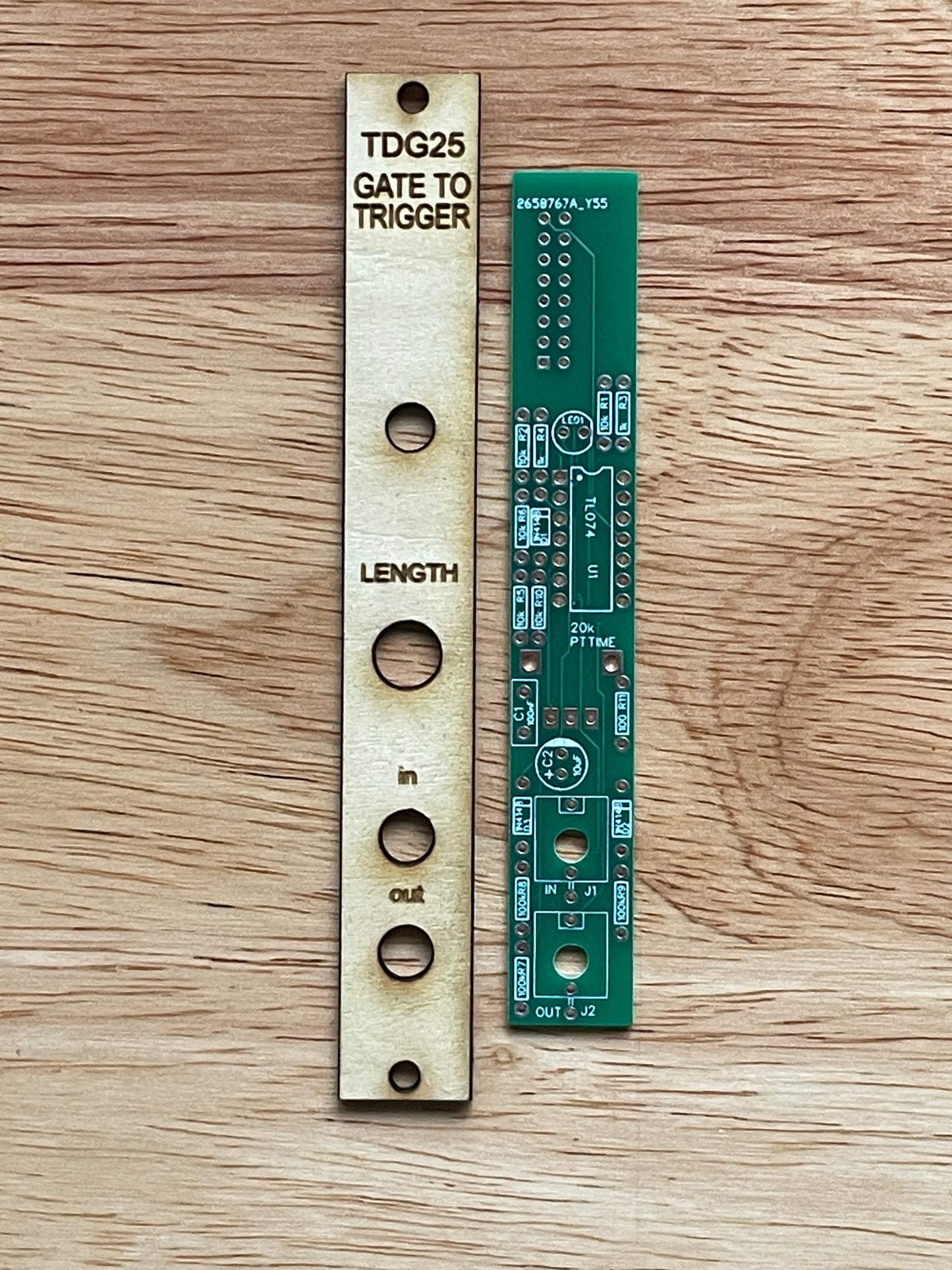

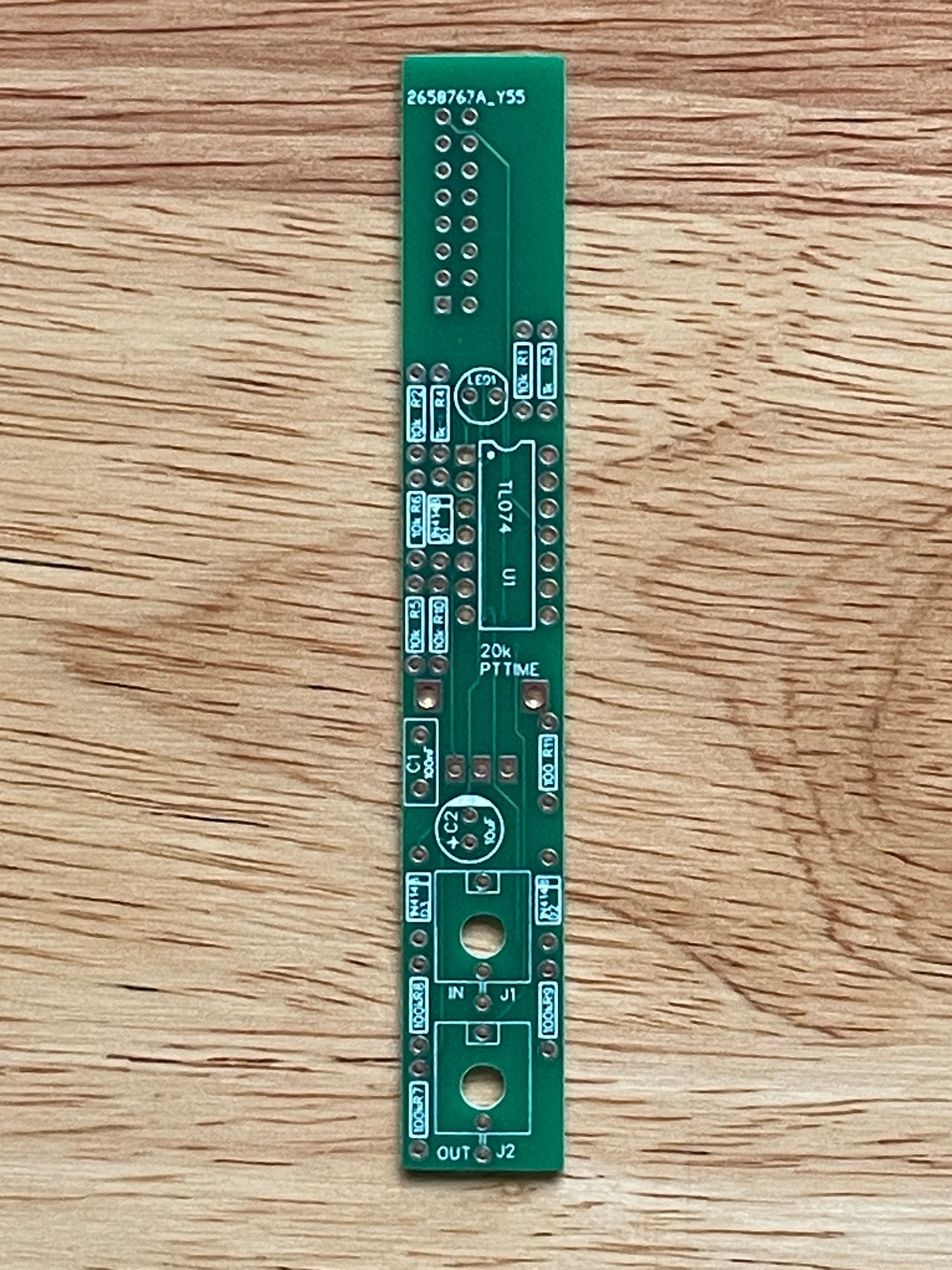

Package includes: PCB and frontplate only.
BOM
|
ID |
Name |
Designator |
Footprint |
Quantity |
|
1 |
LED5mm |
LED1 |
LED-TH_BD5.0_RED |
1 |
|
2 |
IN |
J1 |
THONKICONN |
1 |
|
3 |
OUT |
J2 |
THONKICONN |
1 |
|
4 |
10k |
R1,R10,R5,R6,R2 |
R_AXIAL-0.3 |
5 |
|
5 |
1N4148 |
D2,D1,D3 |
DO-35_BD2.0-L4.0-P8.00-D0.5-FD |
3 |
|
6 |
100nF |
C1 |
RAD-0.2 |
1 |
|
7 |
10uF |
C2 |
CAP-D6.3×F2.5 |
1 |
|
8 |
1k |
R3,R4 |
R_AXIAL-0.3 |
2 |
|
9 |
100k |
R7,R8,R9 |
R_AXIAL-0.3 |
3 |
|
10 |
100 |
R11 |
R_AXIAL-0.3 |
1 |
|
11 |
TL074 |
U1 |
TL074 |
1 |
|
12 |
20k |
PTTIME |
POTIALPHA9 |
1 |
|
13 |
Powerconnector |
P1 |
HDR-8X2/2.54 |
1 |
