TDG23 PITCHER
TDG23 PITCHER
Couldn't load pickup availability

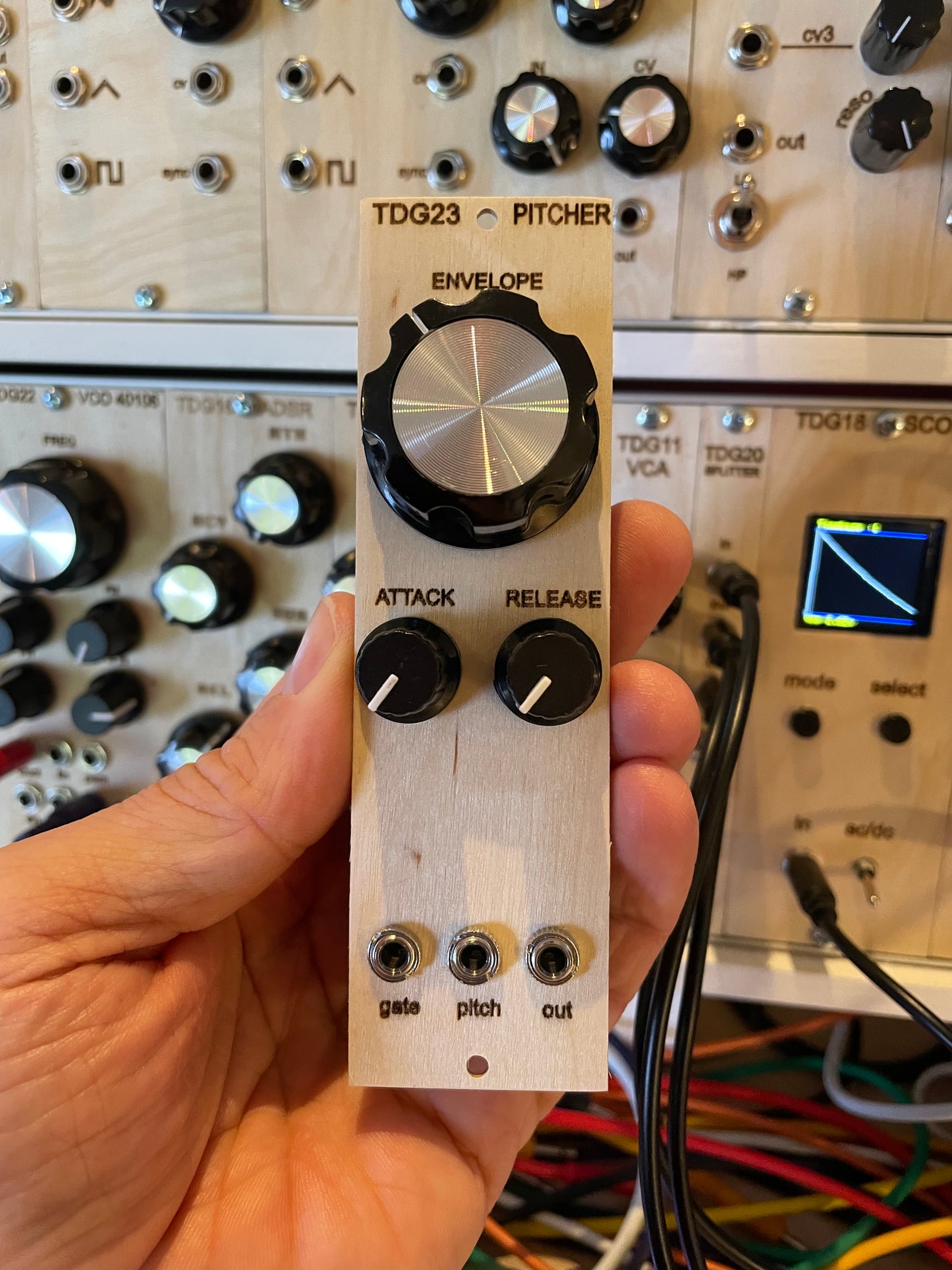

The TDG23 PITCHER is a versatile module that enables adjustable portamento style effects, capable of smoothly transitioning between voltage changes. With independent control over attack and release, various effects can be achieved. This feature is particularly beneficial for creating impressive solo sounds, and is a valuable tool for producing sound effects with precision.

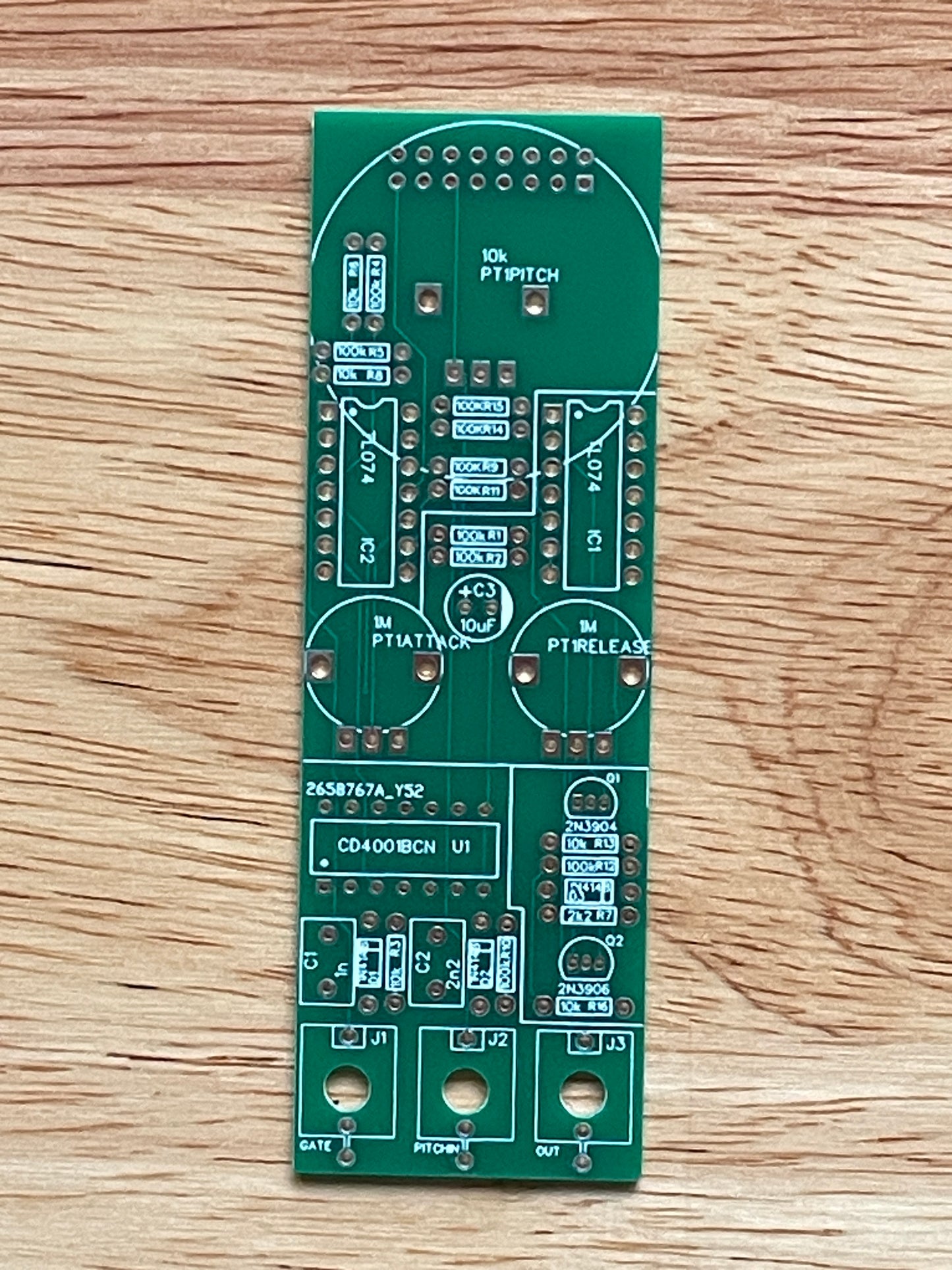

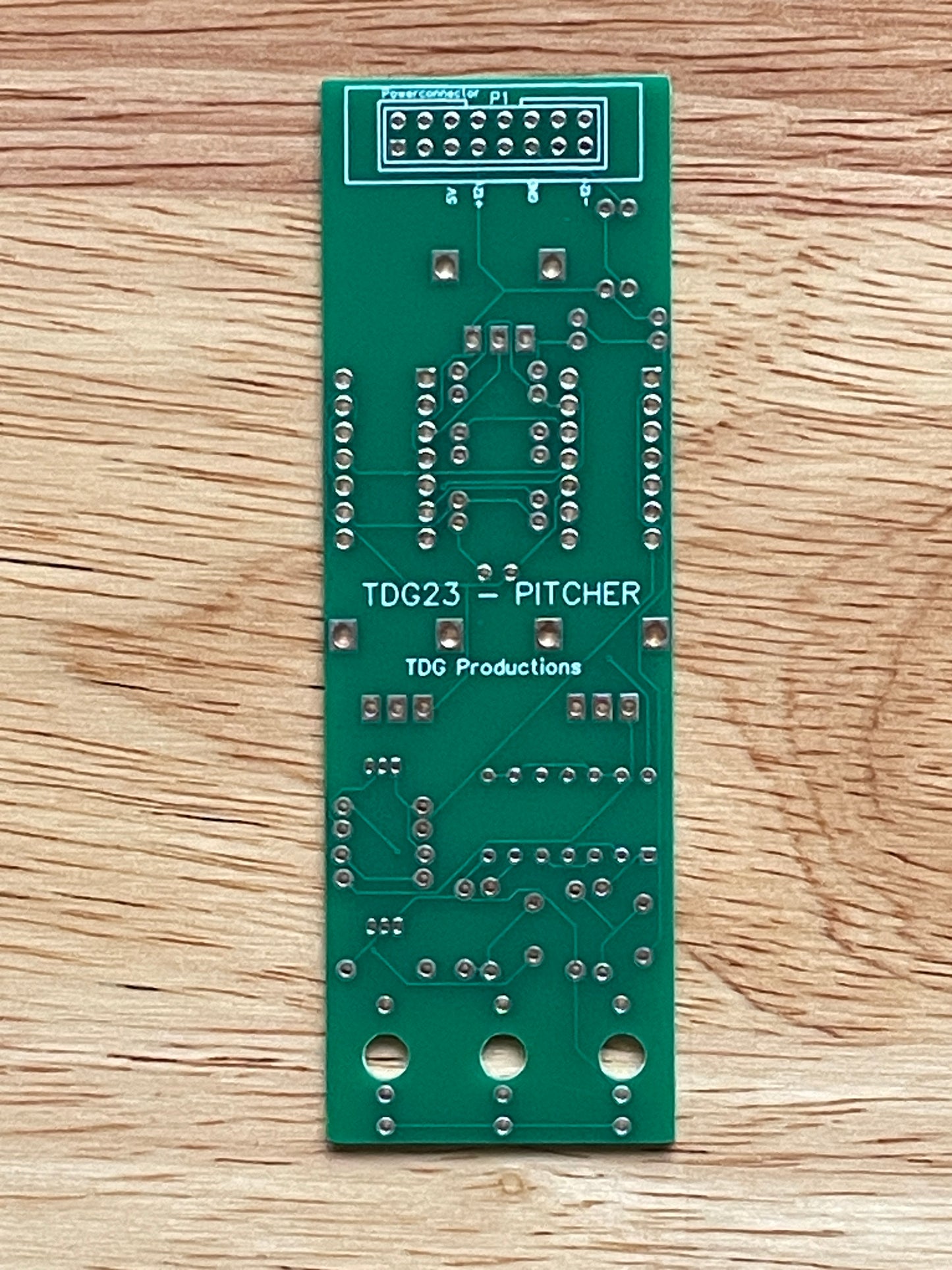

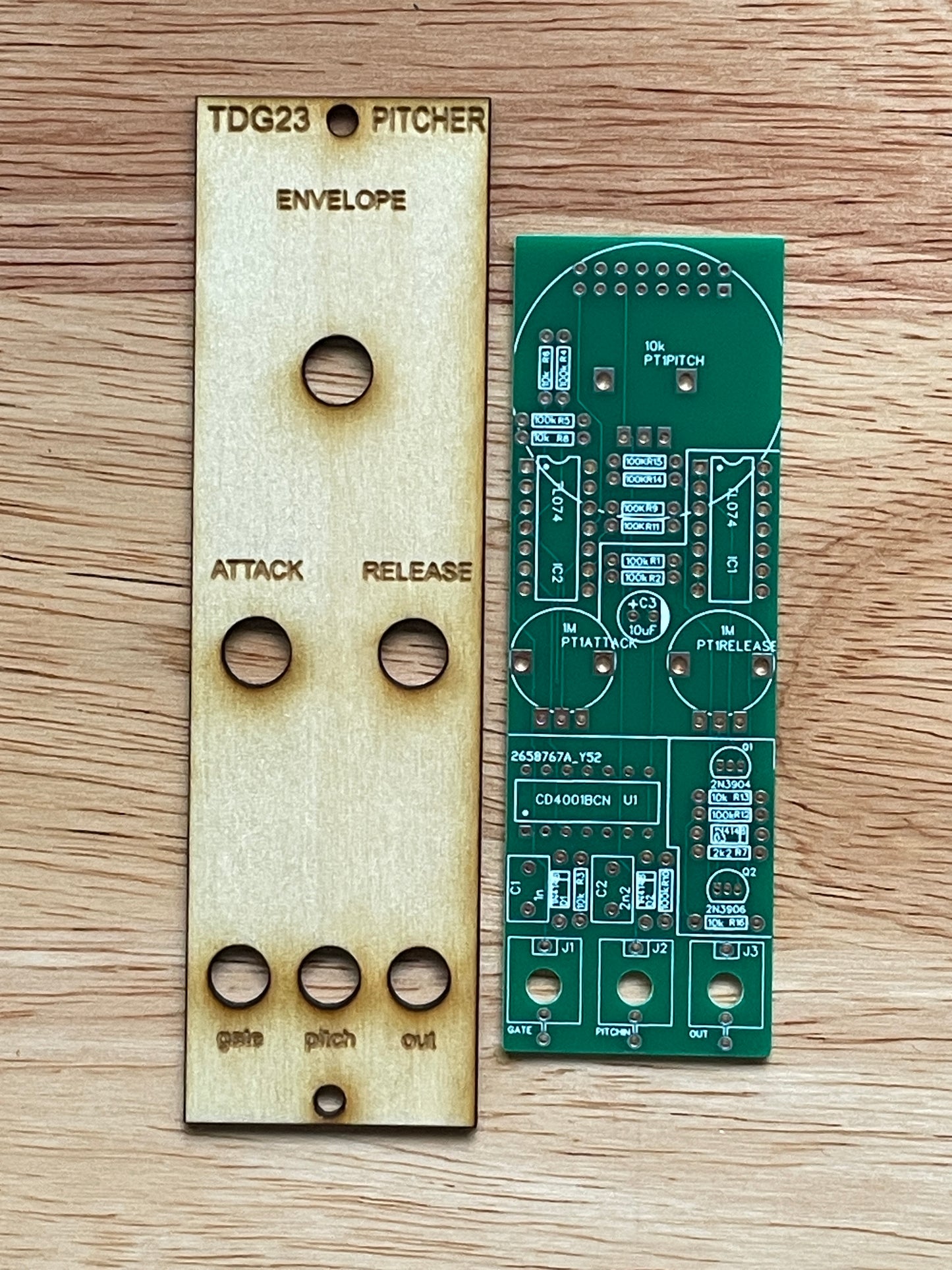

Package includes: PCB and frontplate only.
BOM
|
ID |
Name |
Designator |
Footprint |
Quantity |
|
1 |
1n |
C1 |
RAD-0.2 |
1 |
|
2 |
2n2 |
C2 |
RAD-0.2 |
1 |
|
3 |
10uF |
C3 |
CAP-D6.3×F2.5 |
1 |
|
4 |
1N4148 |
D1,D2,D3 |
DO-35_BD2.0-L4.0-P8.00-D0.5-FD |
3 |
|
5 |
GATE |
J1 |
THONKICONN |
1 |
|
6 |
PITCHIN |
J2 |
THONKICONN |
1 |
|
7 |
OUT |
J3 |
THONKICONN |
1 |
|
8 |
Powerconnector |
P1 |
HDR-8X2/2.54 |
1 |
|
9 |
1M |
PT1ATTACK,PT1RELEASE |
POTIALPHA9 |
2 |
|
10 |
10k |
PT1PITCH |
POTIALPHA9 |
1 |
|
11 |
2N3904 |
Q1 |
TO-92-3_L5.1-W4.1-P1.27-L |
1 |
|
12 |
2N3906 |
Q2 |
TO-92-3_L4.9-W3.7-P1.27-L |
1 |
|
13 |
100k |
R1,R2,R4,R5,R10,R12 |
R_AXIAL-0.3 |
6 |
|
14 |
10k |
R3,R6,R8,R13,R16 |
R_AXIAL-0.3 |
5 |
|
15 |
2k2 |
R7 |
R_AXIAL-0.3 |
1 |
|
16 |
100K |
R9,R11,R14,R15 |
R_AXIAL-0.3 |
4 |
|
17 |
TL074 |
IC1,IC2 |
TL074 |
2 |
|
18 |
CD4001BCN |
U1 |
DIP14 |
1 |
