TDG21 SHIFTER
TDG21 SHIFTER
Regular price
€20,00 EUR
Regular price
Sale price
€20,00 EUR
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

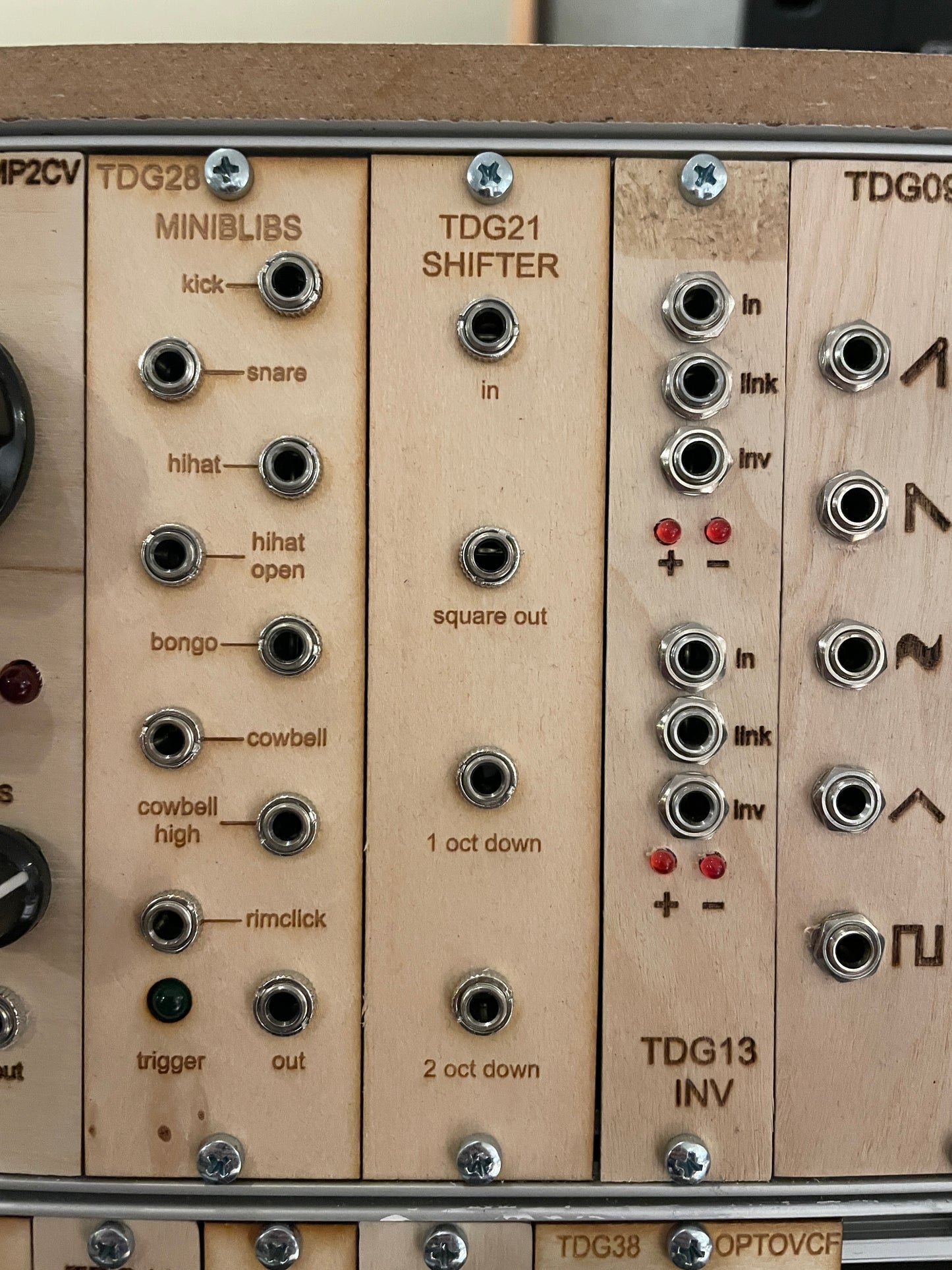

This module can be used to tune your oscillator down 1 and 2 octaves. It is best suited for creating complex layered sounds, the output is always a square wave.
It has an AC coupled input and 3 outputs, square out and -1 octave and -2 octave.

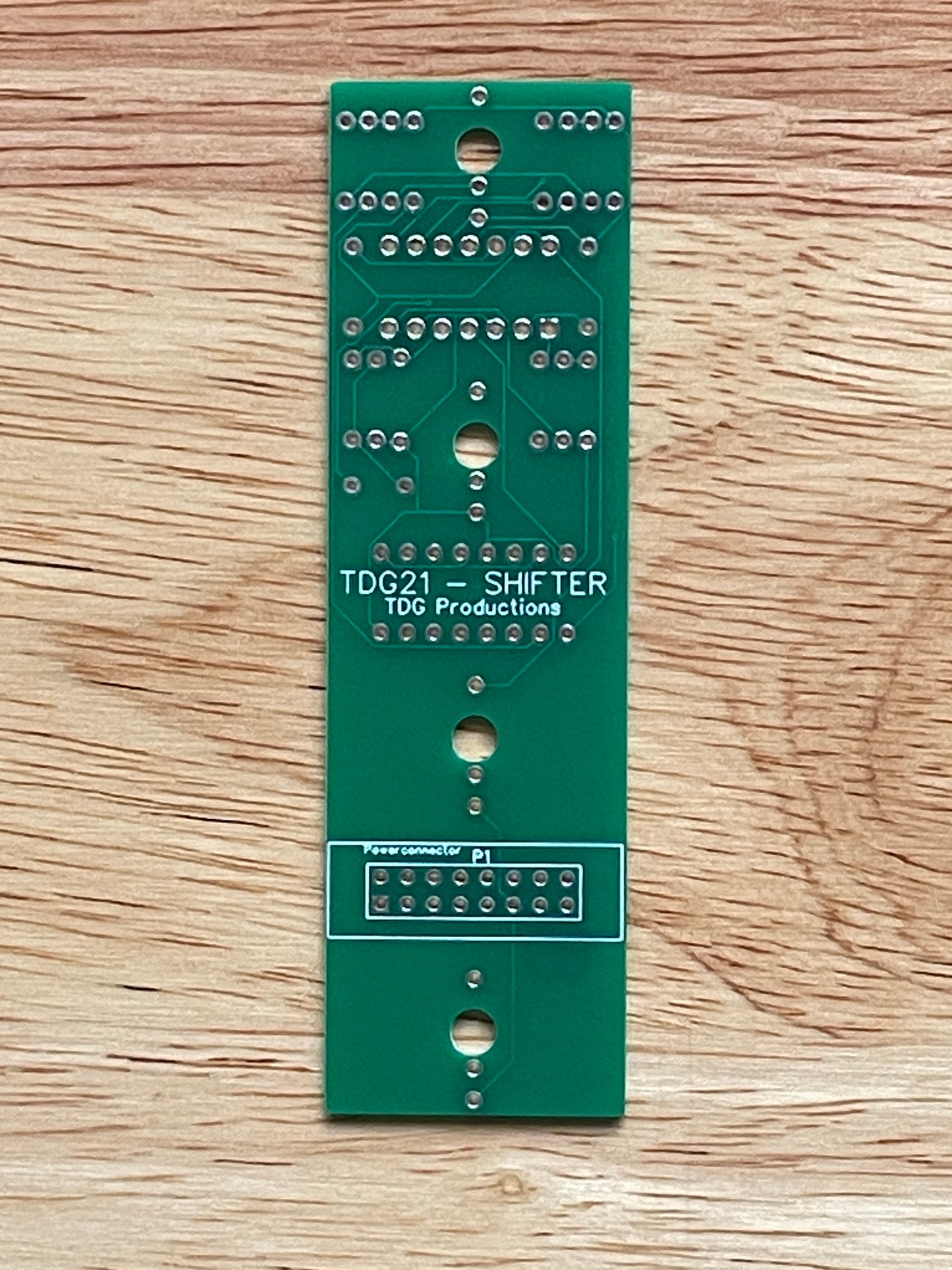

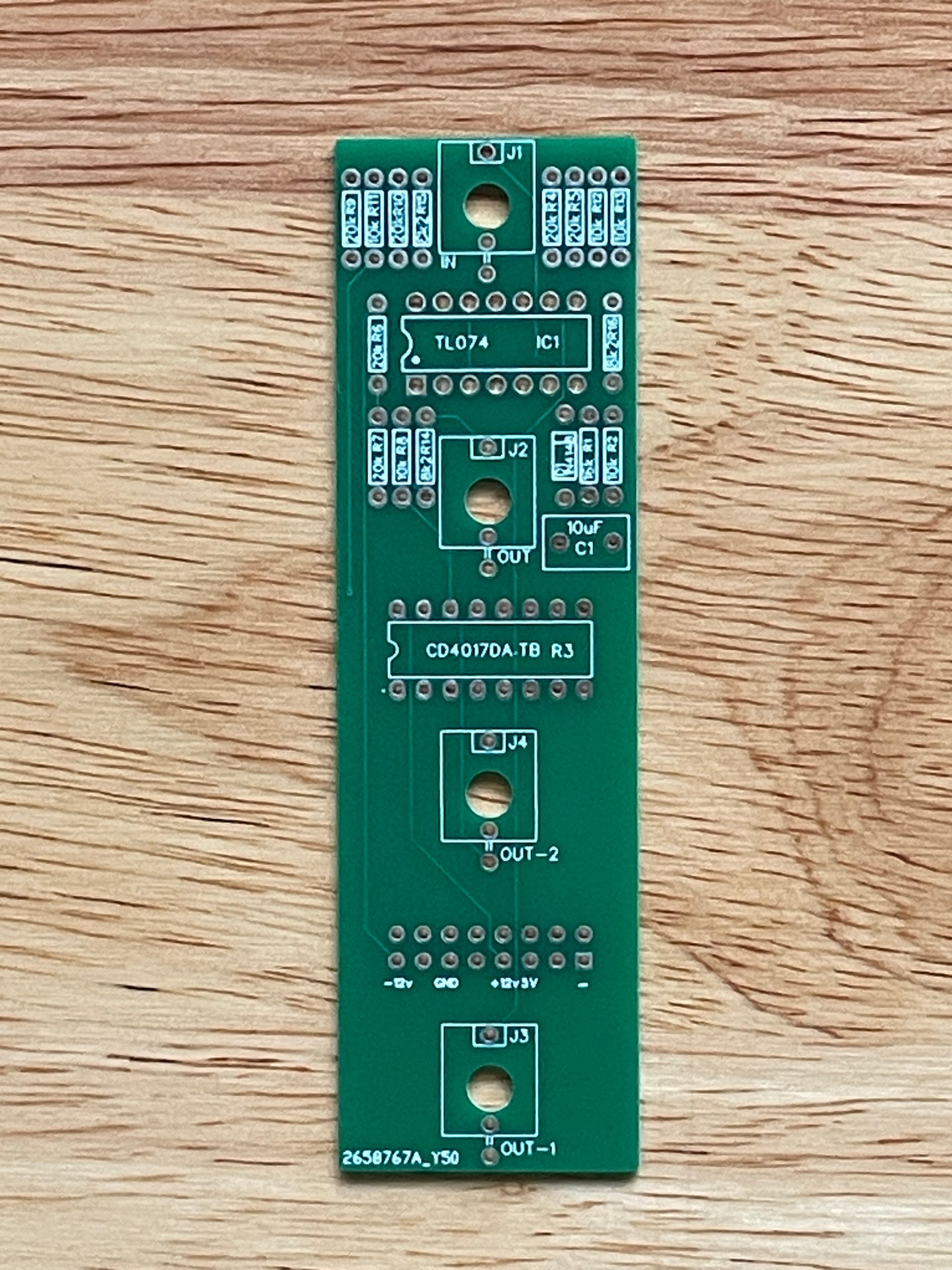

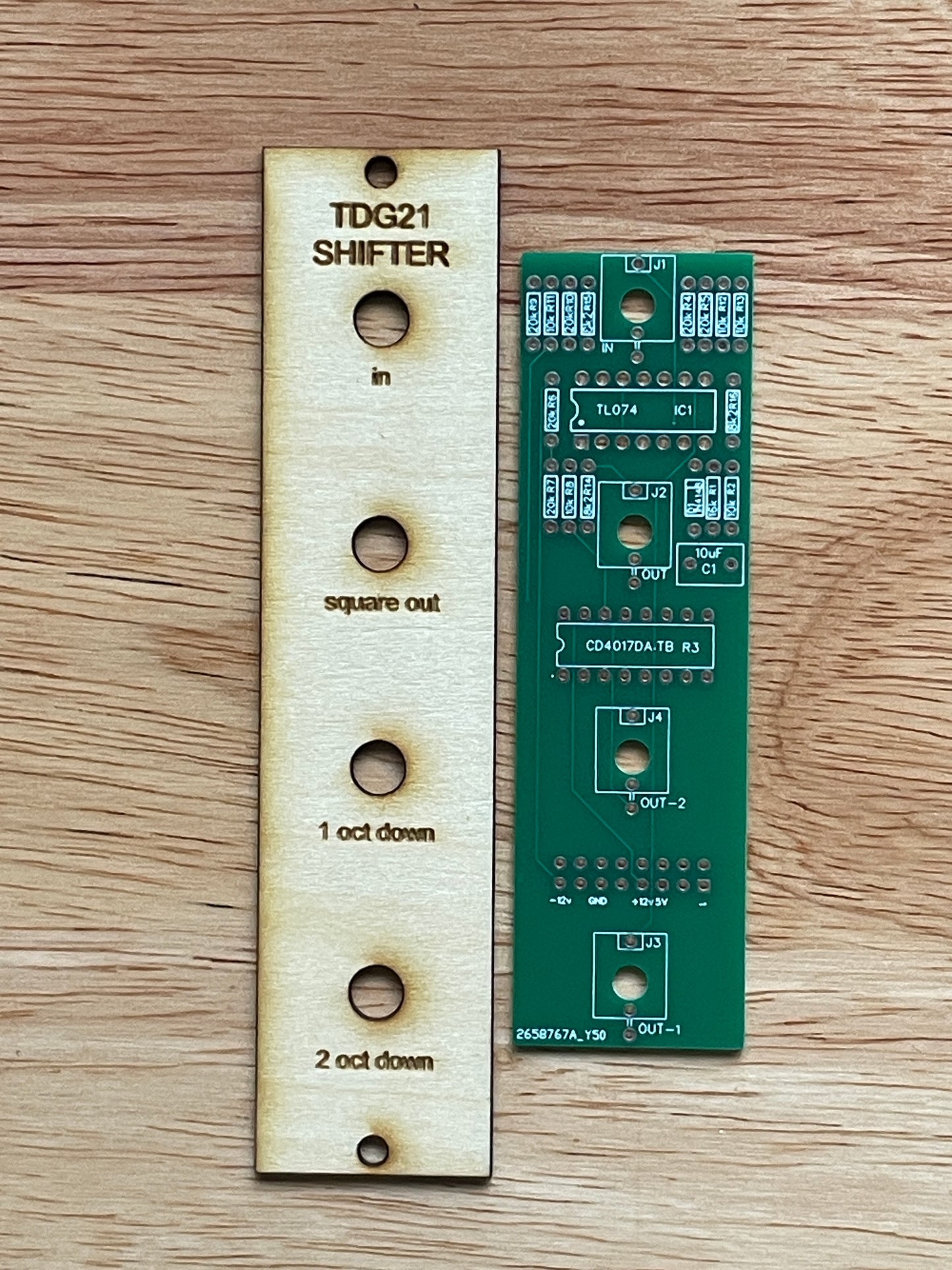

Package includes: PCB and frontplate only.
BOM
|
ID |
Name |
Designator |
Footprint |
Quantity |
|
1 |
10uF |
C1 |
RAD-0.2 |
1 |
|
2 |
1N4148 |
D1 |
DO-35_BD2.0-L4.0-P8.00-D0.5-FD |
1 |
|
3 |
IN |
J1 |
THONKICONN |
1 |
|
4 |
OUT |
J2 |
THONKICONN |
1 |
|
5 |
OUT-1 |
J3 |
THONKICONN |
1 |
|
6 |
OUT-2 |
J4 |
THONKICONN |
1 |
|
7 |
Powerconnector |
P1 |
HDR-8X2/2.54 |
1 |
|
8 |
16k |
R1 |
R_AXIAL-0.3 |
1 |
|
9 |
10k |
R2,R8,R11,R12,R13 |
R_AXIAL-0.3 |
5 |
|
10 |
CD4017DA.TB |
R3 |
PDIP-16_L19.2-W6.6-P2.54-LS7.6-BL |
1 |
|
11 |
20k |
R4,R5,R6,R7,R9,R10 |
R_AXIAL-0.3 |
6 |
|
12 |
8k2 |
R14,R15,R16 |
R_AXIAL-0.3 |
3 |
|
13 |
TL074 |
IC1 |
TL074 |
1 |
